Safety capacitor five-in-one combination machine
- detail
|
|
|
|
|
|
Electrical sorting: |
|
Forming and cutting feet: |
|
Inspection items: capacity, insulation resistance, loss, withstand voltage. Eliminate defective products |
Ensure the consistency of capacitor foot pitch and lead length |
||
|
|
|
|
|
|

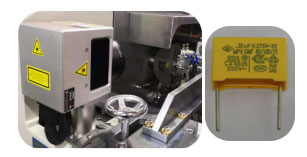

Laser lettering: |
|

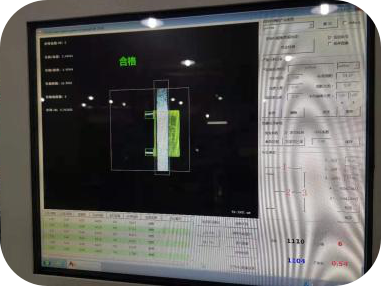

CCD visual sorting: |
|
Statement: The trademark rights such as the company logo belong to the customer铁算算盘44859
Fast marking, no contact, no consumables铁算算盘44859
Clear handwriting does not fall off, anti-counterfeiting and environmental protection
|
It can accurately eliminate defects such as printing content, printing offset, stitch spacing and length. |
||
|
|
|
|
|
|
Pot points: |
|
Automatic packaging: |
|
Set the packaging quantity, after the actual product quantity reaches the set value, the pot will be changed automatically |
Automatically load cartons according to the set packaging quantity, and automatically switch empty cartons to realize automatic switching of double cartons |

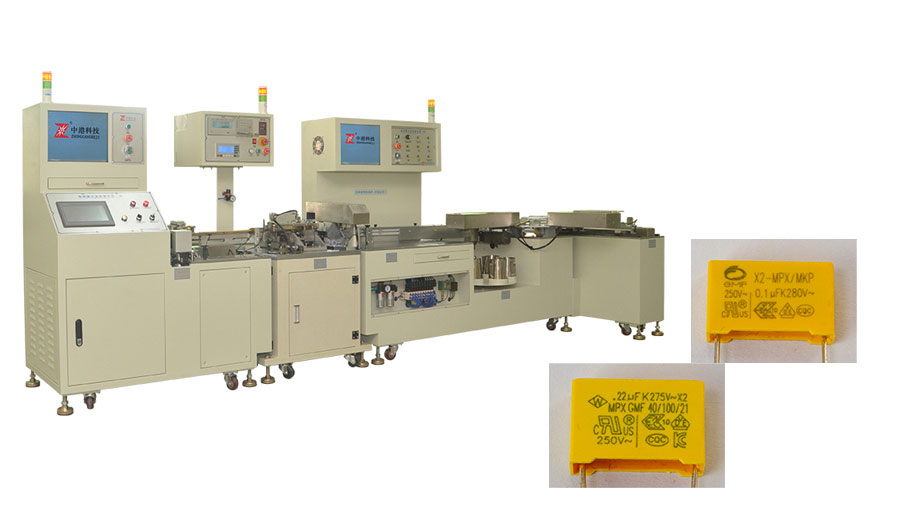

Safety capacitor five-in-one combination machine
This product is a kind of safety capacitors of different specifications: 1) electrical performance sorting, 2) logo printing, 3) shaping and cutting feet, 4) visual sorting, 5) pot filling points, 6) automatic packaging Of fully automatic professional equipment. It is suitable for the occasion of mass production of finished safety capacitors on assembly line.
| · Patented equipment, with one invention patent and three utility model patents |
|
· Compatible with finished capacitors of different sizes铁算算盘44859 |
|
· Eliminate product contamination, bumps, and mixing caused by independent processes铁算算盘44859 |
| · Unattended during normal work, one person can operate multiple machines |
| · Integrated structure design, fine workmanship, high-end appearance |
| · Using CCD visual sorting technology |
| · Integrate 6 major functions to perfectly connect the front-end process of the production line |
| · With output setting and sound and light fault alarm function |
| · Low power consumption design, energy saving and environmental protection |
| · Comes with a dedicated vacuum cleaner to ensure the working environment of the workshop |
|
Input power |
AC220V±5% 50Hz 10A |
|
Machine power consumption |
≤2KW |
|
Gas source铁算算盘44859 |
5KG/CM²铁算算盘44859 |
|
Laser type |
Optical fiber, UV (optional) |
|
Laser power |
3W/5W/10W/20W/30W… (optional)铁算算盘44859 |
|
Foot pitch range |
10mm-27.5mm铁算算盘44859 |
| Dimensions |
L4500mm * W2500mm * H1800mm |
|
MTBF |
≥80,000 hous |
|
Marking efficiency铁算算盘44859 |
4,800-6,000pcs/hour |
|
Ambient temperature铁算算盘44859 |
5-30℃铁算算盘44859 |
|
Working humidity |
Relative humidity: ≤75% (no condensation)铁算算盘44859 |
ZG – XX XX XXX-AG
Model analysis： (Note: The items with X indicate that customers can customize according to actual needs)
铁算算盘44859For example, the machine represented by "ZG-GX30CSB-AG" is: 30W optical fiber, with shaped cutting feet, visual sorting, automatic packaging safety capacitor laser marking equipment
